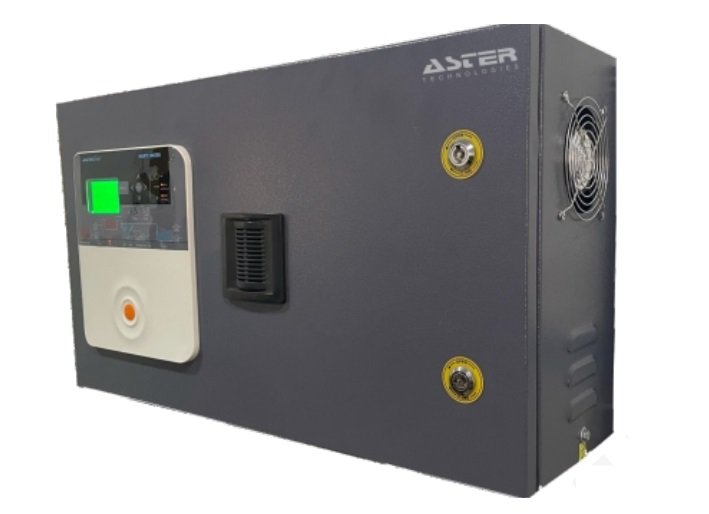

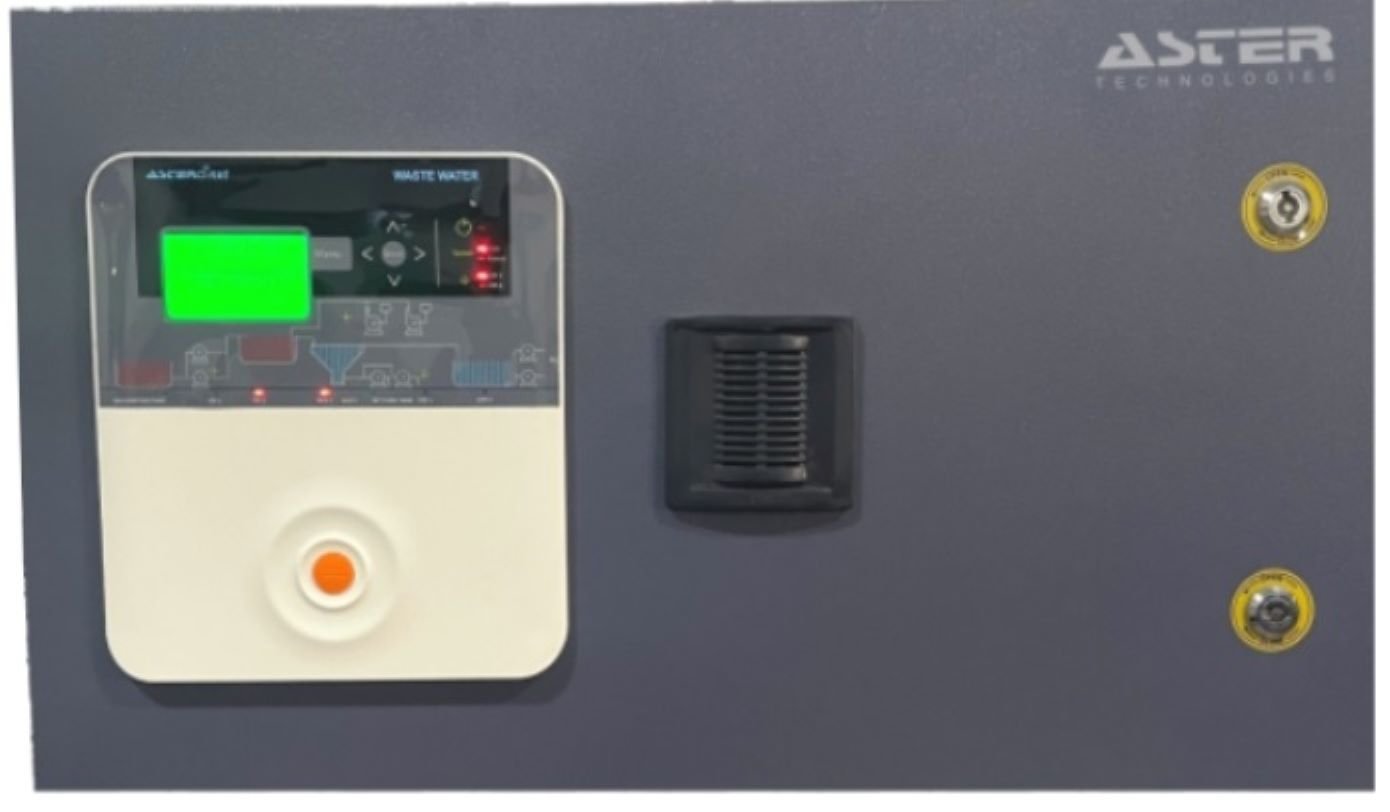

Waste Water Panel

• Overall Size : 700 (H) x 400 (V) x 25 (D) mm
• Display : 20 X 4 graphic display
• Mounting : Wall/ Skid Mount
• Influent Transfer Pump (1W + 1S) : 5 hp 3Φ (Time Based Changeover)
• Air Blower (1W + 1S) : 10 hp 3Φ (Time Based Changeover)
• Filter Feed Pump (1W + 1S) : 5 hp 3Φ (Time Based Changeover)
• Sludge Drain Pump : 5 hp 3Φ (Cycle Based Changeover)
• Spare Pump (1W) : 5 hp 3Φ
• Input :6 SWITCH INPUTS (EQUILISATION TANK LOW LEVEL, CLARIFIED WATER TANK LOW LEVEL, SETTLING TANK LOW LEVEL, PUMP COUNT, DOSING LOW LEVEL, REMOTE FAULT) + 1 Pulse input for Flow sensor
• Output : INFLUENT TRANSFER PUMP, AIR BLOWER, FILTER FEED PUMP SLUDGE DRAIN/RECIRCULATION PUMP, SPARE PUMP, DOSER, ALARM

*H- Horizontal , V- Vertical
