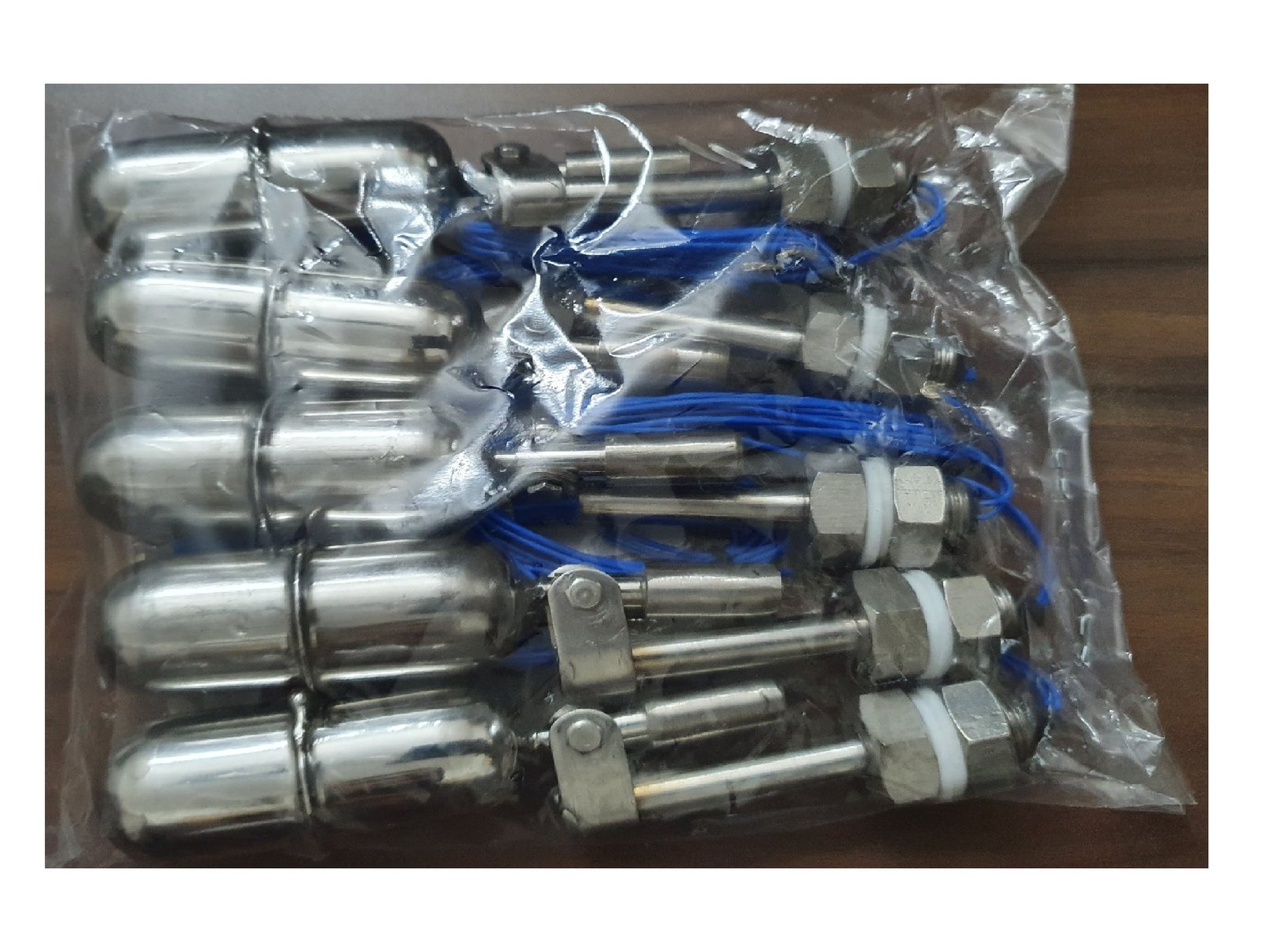

SS316 Float Level Switch (Side Mount)
₹1,000.00 – ₹1,100.00
| SPECIFICATIONS | |
| Type | Side mounted |
| Process Connection | ¼” BSP |
| Switch Type | SPST |
| Rating | 0.5 A @ 230vac / 24vdc |
| Lead Wire Length | 1 Mtr |
| Max Operating Pressure | 2 Bar |
| Max Operating Temp. | 125°C |
| Float material | SS316 |
| Float Length | 30mm & 60mm |
| Float Diameter | 25mm |
| Total Length | 115mm |
| Min Specific Gravity | 1 |
APPLICATIONS:
Water, hydrocarbons, edible oils, acids & alkaline, vending machines for food, beverage, tea & coffee, chiller compressor, plastic extruder, spark erosion/ special purpose/ hydraulic machines, humidifier, dosing equipment for water/ effluent treatment plants and bilge level control in ships
| Float Length | 30mm, 60mm |
|---|
